Quick Summary: Rigid Flex Circuits combine rigid PCB stability with flexible interconnections to eliminate connectors, reduce assembly complexity, and improve mechanical durability. Widely used in medical, automotive, aerospace, and industrial systems, rigid-flex technology enhances vibration resistance, signal integrity, and space optimization. By integrating multiple board sections into a unified structure, OEM manufacturers can streamline production workflows while increasing long-term reliability. Understanding stack-up design, impedance control, and bend management is essential to maximizing performance and minimizing redesign risks.

When Connectors Become the Weakest Link in High-Reliability Designs

“Why did the vibration test fail again?”

The OEM project manager looked at the damaged connector under the microscope. The hardware engineer sighed: “The board-to-board connector is the weak point. If we eliminate it and integrate the structure, we solve both reliability and space issues. We need Rigid Flex Circuits.”

That scenario is common in OEM manufacturing. As product designs become smaller, lighter, and more integrated, traditional rigid PCB assemblies with connectors and wire harnesses introduce mechanical risks, signal instability, and assembly complexity. Rigid-flex technology bridges this gap by combining rigid board stability with flexible circuit adaptability in a single unified structure.

This comprehensive guide explores the engineering structure, design strategy, reliability data, industry case applications, and OEM-level manufacturing considerations of Rigid Flex Circuits, providing practical insight for manufacturers seeking higher reliability and integration efficiency.

Rigid Flex Circuits supplier
Rigid Flex Circuits supplier

Why Rigid Flex Circuits Are Transforming OEM Manufacturing

OEM manufacturers today face mounting pressures:

  • Miniaturization requirements

  • Harsh operating environments

  • High vibration exposure

  • Complex signal routing

  • Faster production timelines

Rigid-flex architecture integrates rigid PCB sections with flexible interconnect layers into one cohesive unit. This eliminates connectors, reduces assembly steps, and enhances mechanical resilience.

As highlighted by JSCircuit, advanced PCB solutions increasingly focus on integration efficiency and structural durability—key priorities for OEM production lines.

The shift toward rigid-flex is not trend-driven; it is performance-driven.

Structural Anatomy of Rigid Flex Circuits

Rigid-flex circuits combine:

  • Rigid FR-4 or high-Tg substrates

  • Flexible polyimide layers

  • Plated through-holes connecting rigid and flex zones

  • Controlled impedance routing

  • Reinforcement stiffeners where needed

For detailed specifications and fabrication capabilities, explore Rigid Flex Circuits.

Key Engineering Characteristics

  1. Integrated mechanical and electrical structure

  2. Reduced connector dependency

  3. Improved shock and vibration tolerance

  4. Enhanced 3D packaging flexibility

Rigid-flex technology supports multi-layer stack-ups, enabling complex routing in compact spaces.

Pain Points in Traditional PCB Assemblies (And How Rigid Flex Solves Them)

Problem 1: Connector Failure

Connectors are common mechanical failure points in high-vibration environments.

Solution:
Rigid-flex eliminates internal connectors by embedding flex interconnects directly into the board structure.

Problem 2: Assembly Complexity

Multiple boards and cable harnesses increase labor and potential assembly errors.

Solution:
Rigid-flex consolidates components into a unified assembly, reducing handling steps and improving production yield.

Problem 3: Signal Integrity Risks

Inter-board connectors introduce impedance discontinuities.

Solution:
Continuous copper routing across rigid and flex zones ensures stable signal paths.

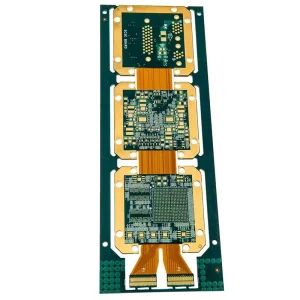

Rigid Flex circuits | JS Circuit INC
Rigid Flex circuits

Rigid Flex circuits3 | JS Circuit INC
Rigid Flex circuits

Reliability Data and Engineering Performance

Studies in automotive and aerospace electronics indicate that removing connectors significantly reduces mechanical failure rates. Integrated flex transitions distribute stress more evenly compared to soldered cable connections.

Performance validation commonly includes:

  • Thermal cycling tests

  • Vibration endurance testing

  • Dynamic flex testing

  • Impedance verification

Engineering teams with strong fabrication expertise, such as those presented on the About Us page, emphasize design-for-reliability from early project phases.

OEM manufacturers benefit most when rigid-flex design decisions are aligned with production capability.

Industry Applications of Rigid Flex Circuits

Rigid-flex technology is particularly valuable in sectors requiring durability and compact integration.

Medical Electronics

In Medical applications, rigid-flex boards are used in:

  • Portable diagnostic systems

  • Imaging modules

  • Surgical tools

They enable compact form factors while maintaining electrical stability under movement.

Automotive Systems

In Automotives environments, rigid-flex supports:

  • ADAS control modules

  • Engine monitoring systems

  • Battery management units

Automotive electronics must withstand vibration, temperature extremes, and long operational lifecycles—making rigid-flex integration highly advantageous.

Industrial Equipment

In Industrial automation systems, rigid-flex boards reduce wiring complexity in:

  • Robotics

  • Control panels

  • Embedded sensing devices

The structural integration minimizes failure points in continuous operation environments.

Consumer Products

Within Consumer Products, rigid-flex circuits enable:

  • Foldable electronics

  • Compact wearables

  • High-density smart devices

The combination of thin flex sections and rigid component areas supports modern industrial design aesthetics.

Telecommunications Infrastructure

In Telecom systems, rigid-flex boards improve:

  • High-frequency signal routing

  • Controlled impedance pathways

  • Space optimization in network modules

As 5G and high-speed data demands increase, rigid-flex design enhances signal stability in constrained layouts.

Aerospace and Security Systems

In Aerospace & Security applications, rigid-flex circuits are used in:

  • Avionics systems

  • Satellite modules

  • Defense communication platforms

Weight reduction and mechanical durability are critical factors, and rigid-flex integration supports both.

Design Best Practices for OEM Manufacturers

1. Optimize Layer Stack-Up

  • Balance rigid and flex layers

  • Align neutral bend axis

  • Avoid vias in dynamic bend regions

2. Plan 3D Mechanical Integration Early

Rigid-flex boards are often folded during assembly. 3D modeling reduces mechanical interference risks.

3. Focus on Impedance Control

High-speed designs require consistent reference planes across rigid-flex transitions.

4. Collaborate Early With Fabrication Engineers

Manufacturability considerations influence material selection and layer alignment. OEM teams can initiate technical discussions through Contact Us to ensure early-stage alignment.

Data-Driven Advantages for OEM Production

Rigid-flex circuits deliver measurable benefits:

  • Reduced component count

  • Lower assembly error rate

  • Enhanced mechanical reliability

  • Improved signal integrity

  • Space-saving integration

OEM production lines often experience increased yield due to simplified assembly structures.

Rigid Flex Circuits Trend Chart
Rigid Flex Circuits Trend Chart

Common Mistakes OEM Teams Should Avoid

  1. Ignoring bend radius limitations

  2. Placing vias in flex zones

  3. Overlooking thermal expansion differences

  4. Treating rigid-flex like a traditional rigid PCB

Proper engineering discipline prevents costly redesign cycles.

Frequently Asked Questions

1. What are Rigid Flex Circuits used for?

They are used in compact, high-reliability electronic systems that require both structural stability and flexible interconnections.

2. Do rigid-flex boards reduce assembly time?

Yes. By eliminating connectors and cable assemblies, they simplify production workflows.

3. Are rigid-flex circuits suitable for high-vibration environments?

Yes. Integrated structures improve mechanical durability compared to multi-board assemblies.

4. Can rigid-flex support high-speed signal routing?

Yes. Controlled impedance routing across rigid and flex sections enhances signal integrity.

5. When should OEMs consider rigid-flex integration?

When space constraints, reliability requirements, or assembly complexity exceed the capabilities of traditional rigid PCB systems.

Engineering Integration for the Next Generation of OEM Products

Returning to the opening lab discussion—the failed vibration test was not simply a component issue. It was an architectural limitation.

Rigid-flex technology addresses the root cause by integrating mechanical and electrical systems into one unified design. For OEM manufacturers seeking durability, compact integration, and long-term reliability, Rigid Flex Circuits offer a strategic engineering solution.

By aligning stack-up planning, manufacturing precision, and application-specific requirements, OEM teams can reduce failure risks, enhance signal performance, and streamline production processes.

In a world where electronics must bend without breaking, rigid-flex circuits provide the structural intelligence modern manufacturing demands.

Practical Takeaway: Rigid Flex Circuits are ideal when traditional rigid PCB assemblies introduce connector failures, signal instability, or excessive assembly steps. OEM teams should evaluate vibration exposure, routing density, and spatial constraints early in development. Eliminating board-to-board connectors and integrating flexible interconnects can significantly improve durability and simplify production. With proper stack-up balancing, impedance control, and mechanical planning, rigid-flex integration delivers measurable gains in reliability, manufacturing efficiency, and long-term product performance across demanding electronic applications.
