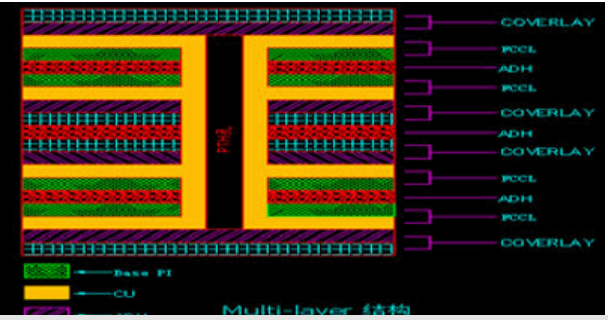

Multi-Layer flexible circuits
Consist of 3-8 copper layers encapsulated with dielectric, normally connected with a plated through-hole Multi-layer circuits can be fabricated with or without cover-layers.
Multi-Layer flexible circuits Manufacturer in China
Multi-layer flexible circuits consist of three or more copper conductor layers laminated with flexible dielectric films, interconnected through plated vias. Designed for complex routing, controlled impedance, and high-density electronic assemblies, multi-layer FPCs offer excellent electrical performance while maintaining flexibility and a thin, lightweight structure. As a leading manufacturer in China, we provide custom stack-ups, precision fabrication, and engineering support for advanced OEM applications.
Detailed Specification
| Field | Value |
|---|---|
| Structure | 3–10+ copper layers with flexible PI dielectric |
| Interconnection | PTH, blind/buried vias (optional) |
| Coverlay | Available with or without polyimide coverlay |
| Copper Thickness | 12–35 μm per layer (customizable) |
| Dielectric Thickness | 12–50 μm PI layers, custom total thickness |
| Impedance Control | Supported for high-speed signal designs |
| Surface Finish | ENIG, OSP, Immersion Tin, etc. |
| Typical Use | HDI modules, smartphones, medical devices, automotive electronics |
Different Types of Multi-Layer flexible circuits
Multi-Layer flexible circuits Design
Multi-Layer flexible circuits Features
Multi-layer flexible circuits provide significantly enhanced design capability compared to single- and double-layer FPCs. With multiple conductive layers, they support dense signal routing, power/ground plane distribution, and controlled impedance for high-speed digital interfaces.
The laminated PI structure remains thin and flexible while offering excellent mechanical strength and thermal resistance. Custom stack-ups, via structures, stiffeners, and copper weights allow manufacturers to achieve compact, highly reliable interconnects for demanding modern electronics. These circuits are compatible with SMT assembly, reflow soldering, connector termination, and automated production environments.
Wide Applications of Multi-Layer flexible circuits
Multi-layer flexible circuits are widely used in advanced electronic systems requiring complex layouts in limited space. In consumer electronics, they are applied in smartphones, foldable devices, cameras, and wearable modules where high-density interconnection is critical. In automotive and EV systems, multi-layer FPCs support ADAS sensors, infotainment modules, battery management systems, and in-vehicle communication networks.
They are also used in medical equipment, industrial automation, aerospace devices, and compact computing systems that require lightweight, bendable, and highly reliable circuitry. Their combination of multi-layer capability and flexibility makes them essential for next-generation product designs.
