How to Design Single-Layer Flexible Circuits for Compact Devices

“Can We Shrink It Without Breaking It?”

“Can we reduce the thickness by another 30%?”

The industrial designer looked at the exploded CAD view of a wearable module. The mechanical housing was already optimized. The battery was custom-shaped. The display was edge-bonded.

The electrical engineer hesitated.

“We can—if we redesign the interconnect structure using Single-Layer Flexible Circuits instead of rigid boards and wire harnesses.”

That moment reflects a global shift in electronics design. As compact devices dominate consumer electronics, medical wearables, automotive sensors, and IoT modules, traditional rigid PCB architecture often becomes the limiting factor. Space constraints, vibration exposure, thermal concentration, and signal integrity must now coexist in millimeter-scale layouts.

This article provides a practical, engineering-driven guide to designing Single-Layer Flexible Circuits for compact devices. Using real-world manufacturing insights and structured design principles, we’ll explore pain points, solutions, data-backed performance considerations, and implementation strategies—supported by industry practices fromJSCircuit.

The Real Design Pain Points in Compact Electronics

Before discussing solutions, we must clearly define the challenges engineers face.

1. Space Compression

Modern wearable devices are often under 8mm thick. According to market research reports on wearable electronics growth, miniaturization continues at double-digit annual rates. Internal PCB volume is shrinking while functionality increases.

2. Connector Failures

Industry reliability studies show that connectors account for up to 60% of electromechanical failures in vibration-heavy environments. Every additional interconnect increases:

• Assembly complexity

• Tolerance stack-up

• Failure probability

3. Signal Integrity in Tight Layouts

High-speed data lines in compact products suffer from:

• Crosstalk

• Impedance mismatch

• EMI exposure

4. Mechanical Stress from Repeated Movement

Foldable devices, medical patches, and automotive modules experience:

• Bending cycles

• Thermal expansion

• Micro-vibration

Traditional rigid PCBs are not designed for continuous flexing. This is where Single-Layer Flexible Circuits shift the paradigm.

Why Single-Layer Flexible Circuits Are the Structural Solution

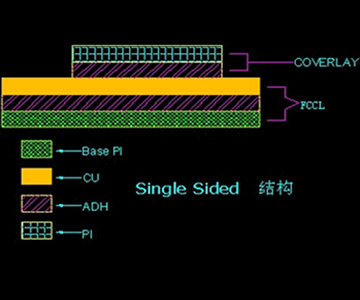

Single-layer flexible circuits combine:

• A single copper conductive layer

• Polyimide flexible substrate

• Coverlay insulation

Their minimal stack-up provides mechanical adaptability without unnecessary bulk.

At About Us, JSCircuit outlines its engineering-focused manufacturing philosophy—integrating DFM (Design for Manufacturability) analysis early in the process. This approach is crucial when designing compact flexible systems, where minor dimensional deviations can cause system-level issues.

Key Structural Advantages

1. Ultra-Thin Architecture
   Flexible circuits can be significantly thinner than traditional rigid boards with connectors.

2. Integrated Routing
   Eliminates wire harnesses and board-to-board connectors.

3. Dynamic Flex Capability
   Properly designed flex circuits can endure thousands of bend cycles.

4. Reduced Assembly Steps
   Simplified interconnect architecture reduces manufacturing complexity.

Step-by-Step Guide to Designing Single-Layer Flexible Circuits

Step 1: Define Mechanical Requirements First

Ask early:

• Is the circuit static-flex (bent once during installation)?

• Or dynamic-flex (continuous bending during operation)?

Dynamic applications require:

• Larger bend radius

• Rolled-annealed copper

• Stress-relief routing

Ignoring this stage often leads to premature cracking.

Step 2: Calculate Proper Bend Radius

A widely accepted guideline:

Minimum bend radius = 6–10x total circuit thickness (for dynamic flex)

For example:

• 0.1mm thickness → 0.6–1.0mm minimum bend radius

Failure to respect this ratio dramatically increases copper fatigue risk.

If engineers require design validation assistance, JSCircuit provides direct engineering consultation via its Contact Us channel, enabling collaborative mechanical-electrical integration planning.

Step 3: Optimize Trace Routing for Stress Distribution

Routing best practices include:

• Avoid 90-degree corners

• Use teardrop pads

• Maintain consistent copper density

• Keep traces perpendicular to bend axis

Finite element simulation studies show that sharp trace angles increase stress concentration by up to 30% compared to curved routing.

Step 4: Control Impedance for High-Speed Performance

A common myth suggests flexible circuits cannot support high-speed signals.

In reality, controlled impedance can be achieved through:

• Precise dielectric thickness

• Accurate copper trace width

• Ground referencing strategy

The technical overview on Single-Layer Flexible Circuits explains structural parameters that enable stable signal transmission in compact designs.

Proper impedance modeling ensures:

• Reduced reflection

• Signal timing accuracy

• EMI mitigation

Step 5: Validate Through Prototyping and Testing

Testing should include:

• Bend cycle fatigue test

• Thermal shock test

• Vibration simulation

• Electrical continuity monitoring

The data collected during prototype validation informs long-term durability expectations.

For broader technical insights, the comprehensiveUltimate Guide to Single-Layer Flexible Circuits for Modern Electronics provides foundational engineering principles that complement compact device design.

Application-Specific Design Considerations

Compact devices vary widely. Design requirements differ across sectors.

Wearable Electronics

• Skin contact safety

• Lightweight comfort

• High-density sensor routing

Medical Devices

• Biocompatibility

• Sterilization resistance

• Continuous signal reliability

Automotive Sensors

• Vibration endurance

• Temperature cycling stability

• Compact integration into constrained modules

The Application section outlines how flexible circuits adapt across diverse industries, demonstrating practical deployment strategies beyond theoretical design.

Manufacturing Capabilities Matter in Compact Design

Designing is only half the equation. Manufacturing precision determines performance consistency.

Critical manufacturing factors:

• Laser drilling accuracy

• Copper etching precision

• Coverlay alignment tolerance

• Dimensional stability during lamination

The Capabilities page details advanced fabrication controls that ensure repeatability in ultra-thin flexible circuit production.

High-precision fabrication directly influences:

• Yield rate

• Reliability

• Long-term performance

Case-Based Insights: Real-World Compact Integration

In recent compact wearable projects, flexible architecture allowed:

• 25–40% thickness reduction

• 30% assembly time reduction

• Elimination of two board-to-board connectors

These structural simplifications reduce long-term field failures.

Practical examples shared in theCase Studysection demonstrate how optimized flexible circuit integration resolved vibration-related reliability issues in compact automotive modules.

Case-driven design validation reinforces engineering confidence.

Data-Driven Benefits of Single-Layer Flexible Circuits

Based on aggregated industry observations:

• Connector elimination reduces mechanical failure risk significantly

• Integrated routing lowers total interconnect resistance

• Simplified architecture reduces tolerance stack-up errors

In compact devices where every millimeter matters, architectural simplification improves not just size—but reliability and manufacturability.

Best Practices Checklist for Engineers

Before finalizing your design:

1. Confirm bend radius compliance

2. Avoid copper stacking in bend areas

3. Reinforce high-stress transition points

4. Validate thermal expansion compatibility

5. Collaborate with manufacturer during layout phase

Early-stage DFM consultation prevents redesign cycles and accelerates production readiness.

Frequently Asked Questions

1. What makes Single-Layer Flexible Circuits ideal for compact devices?

Their ultra-thin structure and ability to conform to tight spaces eliminate bulky connectors and reduce overall thickness.

2. How many flex cycles can they withstand?

When properly designed, they can endure thousands of bending cycles without electrical failure.

3. Are flexible circuits suitable for high-speed signals?

Yes, with controlled impedance design and proper grounding strategy.

4. Do flexible circuits reduce assembly complexity?

Yes. Integrated routing reduces connectors and wire harnesses, simplifying assembly.

5. When should I involve the manufacturer in the design process?

Ideally during early layout planning to ensure manufacturability, tolerance control, and material compatibility.

Designing Smarter for Smaller Devices

Returning to the engineer’s original challenge—“Can we shrink it without breaking it?”—the answer lies in structural innovation.

Single-Layer Flexible Circuits are not simply thinner PCBs. They represent a fundamental shift in compact electronic architecture—integrating mechanical adaptability, electrical reliability, and manufacturing efficiency.

By applying proper bend calculations, routing discipline, impedance control, and early DFM collaboration, engineers can unlock thinner, lighter, and more robust compact devices.

In a world where space is limited but performance expectations keep growing, flexible design is no longer optional—it is essential.
